Specialization
Concentrating on assembling only small laboratory systems, we offer optimal solutions to meet your needs
Vacuum deposition systems
at affordable prices
Our prices are worth the quality you get when you buy our laboratory vacuum deposition systems
Reliable components
We install reliable components only from world renowned manufacturers in our vacuum deposition systems
Production time
8-10 months
Training
Online training after delivery
Warranty
1 year
Our promise
Our partners
Reliable parts - reliable system
Mass Flow Controller - Alicat Scientific (USA)
Magnetrons - Angstrom Sciences (USA)
High vacuum pump - Leybold (Germany)
Magnetron power supplies - ADL (Germany)
Vacuum gauges - Thyracont (Germany)
Made in Canada
Expert in vacuum deposition
Our company, located in the Canadian metropolitan area, has many years of experience in creating vacuum deposition systems for laboratories and research centers.
Our production
Our line of laboratory vacuum evaporation and deposition systems are vacuum magnetron systems of the VSM series for 3 magnetrons, vacuum magnetron systems of the SmartLab series for 1 or 2 magnetrons, as well as vacuum thermal evaporation systems of the VSM and SmartLab series.
VSR
2 - 3
evaporation sources
Vacuum Thermal Evaporation System
Thermal vacuum deposition is the most economical method due to the cheaper cost of evaporation sources and power supplies. This is the oldest vacuum deposition method.
In our VSR system, 3 evaporation sources are installed, from which it is possible to evaporate simultaneously, obtaining complex stoichiometric compositions. Instead of the classic resistive evaporation source, low-temperature cells can be installed, allowing evaporation from 30C.

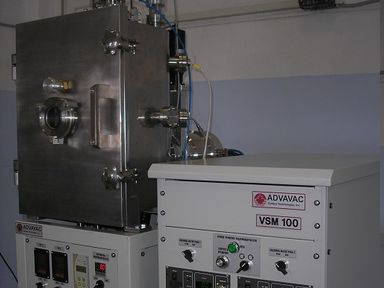

VSM
2 - 4 magnetrons

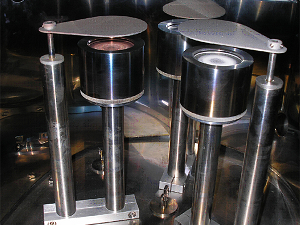

Vacuum Magnetron Sputtering System
Sputtering magnetron system VSM has 2 or 3 or 4 magnetrons, a wide range of options, is the most demanded system for R&D, small and medium batch vacuum deposition. The possibility of installing a DC power supply, an impulse power supply, an RF generator significantly expands the amount of materials used for magnetron sputtering.

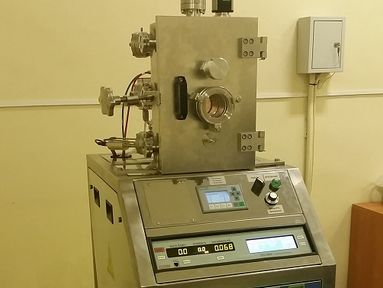

SmartLab-R
1 evaporation
source
Mini Vacuum Thermal Evaporation System
A small laboratory system with a stainless steel chamber, with several flanges for connecting analytical and measuring equipment, with heating the substrate holder, with an oil-free high-vacuum pumping system is the best choice for solving problems of thermal vacuum deposition.

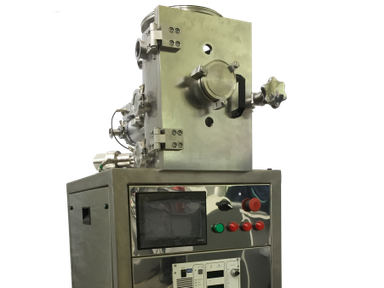

SmartLab-M
1 - 2
magnetrons
Mini Magnetron Vacuum Deposition System
Inexpensive vacuum magnetron sputtering system SmartLab-M1 with one magnetron or SmartLab-M2 with two magnetrons are the optimal choice for a university laboratory. When designing a vacuum magnetron sputtering system SMARTLAB-M, we set out to create the most reliable system that can be available to university laboratories with limited budgetary funds.
Contact us
Address: Ottawa, Canada
